Aurora Solar Canopy
Models from $4,400.00
(S&H not included)
Self-Sustaining GREEN Energy
Transform your existing picnic table into a high tech "green-energy" eco-friendly masterpiece!
Introducing the "Aurora-Solar Canopy", a solar-powered umbrella that has been designed to compliment several picnic table models on the market that are equipped with a 1-1/2" dia umbrella mounting hole in table surface. If you happen to need a table, no problem, EnerFusion also offers the Aurora-Solar Canopy with the Aurora Table with 4, 5, or 6 seating positions.
This charging station is a great addition to any campus or outdoor venue.
The Aurora-Solar Canopy has been designed to provide self-sustaining "GREEN" energy wherever it is placed outdoors with access to direct sunlight.
Not only is this electronic device charging oasis powered by the sun, it is also made from recycled materials to be an eco-friendly masterpiece.
Features of the:
Aurora-Standard model:
Same great features as the Aurora Solar Canopy plus these exciting enhancements!
- 2x (3) USB Type “A” power outlets (6 total)
- (1) USB-C standard 5V charging - cell phone only (2 total)
- (2) Qi enabled "Wireless-Quick Charging” 5W/7.5W/10W/15W 3coil wireless charging locations conveniently located on mini-table top surface.
- Ambient Lighting activated at dusk (qty 6).
- (2) 70 Watt Solar Panel. 140 watt array.
- Solar charge controller with digital readouts and bluetooth connectivity with mobile app to (IOS and Android) monitor system information.
- Robust capacity 20 Ah Gel Cell battery bank or an optional LiFePo4 battery module available for suitable climates.
Aurora PRO model:
Same great features as the Aurora Standard Canopy plus these exciting new enhancements!
- (3) 70 Watt Solar Panel. 210 watt array.
- (3) USB Type “A” standard power outlets
- (1) USB-C standard 5V charging - cell phone only
- (1) USB Type “A” high speed power outlet 5V⎓4A 9V⎓2A 12V⎓1.5A
- (2) USB Type “C” power outlets.
Dual-Port High-Speed USB-C Charger Ports
* (1) 65W USB C Output: 5V ⎓3.0 A / 9V ⎓ 3A / 12V - 3A / 15V ⎓ 3A / 20V ⎓ 3.25A
* (1) 20W USB C Output: 5V ⎓ 3A / 9V ⎓ 2.2A / 12V⎓1.67A
Use a USB-C to Lightning cable for Lightning devices with PD fast charging, and use a USB-C to USB-C cable to
charge your USB-C laptops.
- (2) Qi enabled "Wireless-Quick Charging” 5W/7.5W/10W/15W 3coil wireless charging locations conveniently located on mini-table top surface.
- Robust capacity 20 Ah Gel Cell battery bank or an optional LiFePo4 battery module available for suitable climates.
The Aurora-Solar Canopy is Made in America!
Available Models
AU-SC-4S-ADA
Standard - $7,525.00
“Pro” - $8,400.00
Aurora-Solar Canopy and Table included. Accommodates 4 standard seating positions and 2 ADA access points.
AU-SC-5S-ADA
Standard - $7,850.00
“Pro” - $8,675.00
Aurora-Solar Canopy and Table included. Accommodates 5 standard seating positions and 1 ADA access point.
AU-SC-6S
Standard - $8,110.00
“Pro” - $8,950.00
Aurora-Solar Canopy and Table included. Accommodates 6 standard seating positions.
AU-SC-4B-ADA
Standard - $7,990.00
“Pro” - $9,025.00
Aurora-Solar Canopy and Table included. Accommodates 4 backed seating positions and 2 ADA access points.
AU-SC-5B-ADA
Standard - $8,375.00
“Pro” - $9,410.00
Aurora-Solar Canopy and Table included. Accommodates 5 backed seating positions and 1 ADA access point.
AU-SC-6B
Standard - $8,750.00
“Pro” - $9,810.00
Aurora-Solar Canopy and Table included. Accommodates 6 backed seating positions.
AU-SCHT-3BS
150 MPH Wind Rating
Standard - $8,190.00
“Pro” - $9,030.00
Aurora-Solar Canopy with Mini-Table and 3 Bar Stools included. Features a high-top table with 2” diameter post, and bolt down base.
AU-SC-HT-WU
150 MPH Wind Rating
Standard - $6,125.00
“Pro” - $7,010.00
For use as a stand alone unit. Features a high-top table with 2” diameter post, and bolt down base.
AU-SC-AO
Standard - $4,775.00
“Pro” - $5,610.00
Aurora-Solar Canopy - for use with commercial tables equipped with 1 - 1/2” table hole and ground mounted base. (Table shown for illustration only and is sold separately.)
AU-SC-CT
Standard - $4,400.00
“Pro” - $5,230.00
“Pro” Complete (w/table) - $7,950.00
Aurora-Solar Canopy - for use with cement style tables. (Table shown for illustration only.)
AU-SC-ANB
Standard - $4,400.00
“Pro” - $5,230.00
Aurora-Solar Canopy - for use with commercial tables equipped with 1 - 1/2” table hole and table umbrella integrated base. (Table shown for illustration only.)
AU-TRDL - $2,925.00
Aurora-Traditional Canopy - for use with commercial tables equipped with 1 - 1/2” table hole and table umbrella integrated base.
The Aurora-Traditional Canopy is a shade canopy model that can be utilized in accompaniment with the Aurora-Solar models. The Aurora-Traditional Canopy provides robust shading for seated occupants. (Table shown for illustration only.)
AU-SC-PLAZA
Standard - $5,810.00
“Pro” - $6,630.00
Aurora-Solar Canopy and table.
Table constructed from recycled plastic and can be configured as ADA accessible or standard 6 seating position.
-
AU-SC-ST-LC
Standard - $7,210.00
“Pro” - $8,050.00
Aurora-Solar Canopy with Mini-Table and 3 standard chairs included. Features a standard height table with 2” diameter post, and bolt down base. (each additional chair add $445.00)

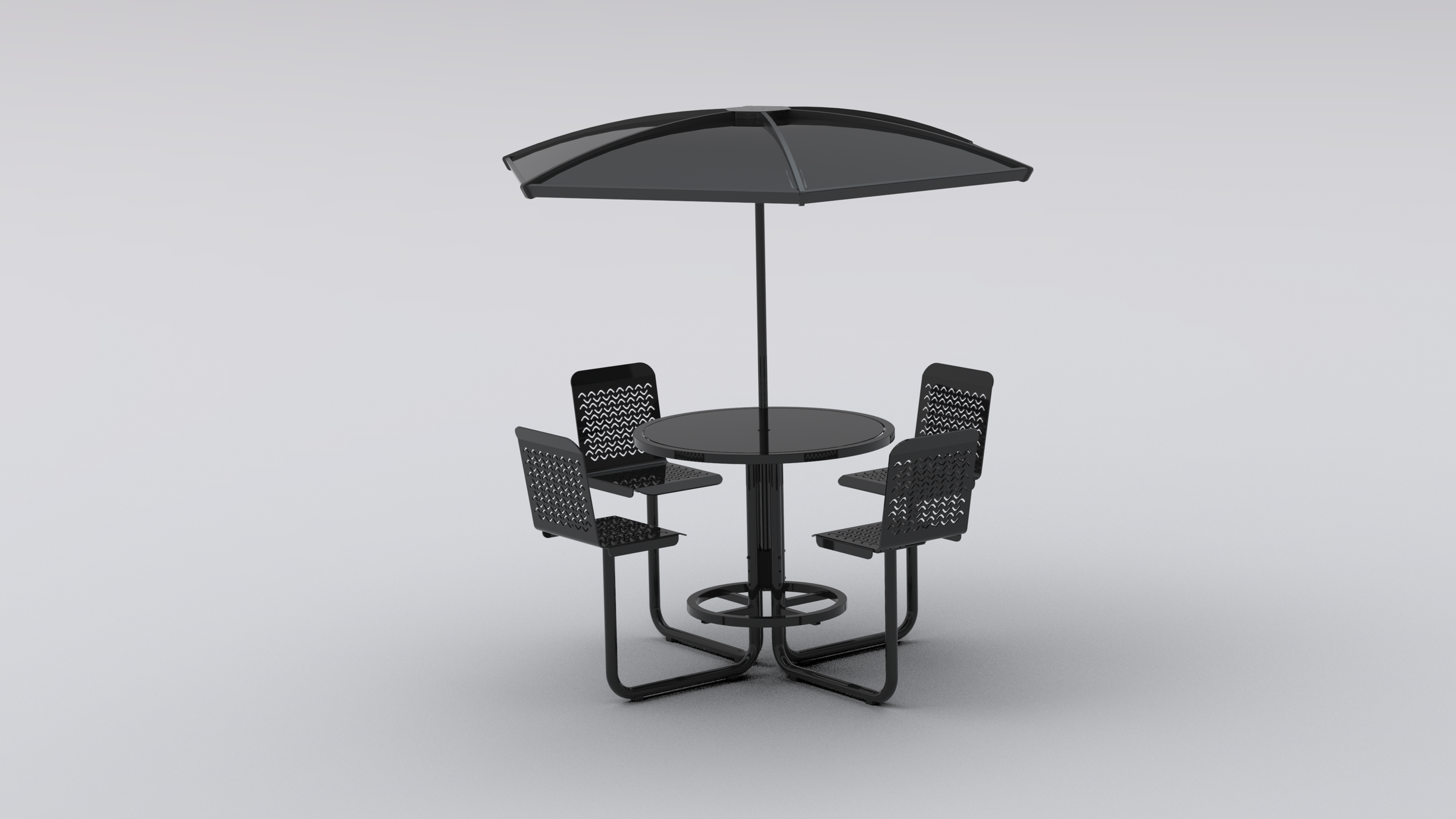

AU-SC-GEM4B
Standard - $6,815.00
“Pro” - $7,645.00
AU-SC-GEM-BH4B
Standard - $7,315.00
“Pro” - $8,145.00
AU-TRDL-GEM-4B
$5,340.00
AU-TRDL-GEM-BH4B
$5,840.00
Custom Color Options
Table top and seat color choices available.
There are several color choices available for the table and seats. These color options are available at no additional cost!
Powder coat paint color choices available.
There are several color choices available for the powder coat paint structure components. These color options are available at no additional cost!
USB-C Charging ports
Universal Compatibility
Our most advanced charging technology ever, charges virtually any device at its fastest possible speed. Provides charging with support for Quick Charge and USB-C Power Delivery for phones, tablets, laptops, and more.
Compatible with
Phones
iPhone 12 / 12 Pro / 12 Pro Max / XS / XS Max / XR / X / 8 Plus / 8 / 7 / 7 Plus /
Samsung Galaxy S10 / S10e / S10+ / S9 / S9+ / S8 / S8+ / Note 9 / Note 8
Huawei P10 / Mate 9 / Mate 20X / Mate 20 Pro
LG G7 / V30+, Google Pixel 3a / 3XL / 3 / 2XL / 2, Nexus 5X / 6P, Sony XZ2 Premium, Sony XZ3, and more
Tablets
iPad Pro 12.9’’ / iPad Pro 10.5’’ / iPad Pro 11’’
Note: Use a USB-C to Lightning cable for Power Delivery fast charging for iPad models earlier than 2018, and for iPhone 8 and above.
Laptops
MacBook Air 13’’ (2018) / MacBook 12’’ / MacBook Pro 13’’ / MacBook Pro 15’’ / Dell XPS 13” / Huawei MateBook and More
Spec:
Total Wattage: 130W
65W USB C Output: 5V ⎓3.0 A / 9V ⎓ 3A / 12V - 3A / 15V ⎓ 3A / 20V ⎓ 3.25A
30W USB C Output: 5V ⎓ 3A / 9V ⎓ 3A / 12V⎓2.5A
Note:
- Use a USB-C to Lightning cable for Lightning devices with fast charging, and use a USB-C to USB-C cable to charge your USB-C laptops.
-After connecting to iPhone 8 and above, fast charging (9V) will begin automatically, regardless of whether you hear one charging indicator sound or two.
Technical Specifications
Product Drawing
Technical specifications:
Brochure
Product brochure.
